Lubricant/grease

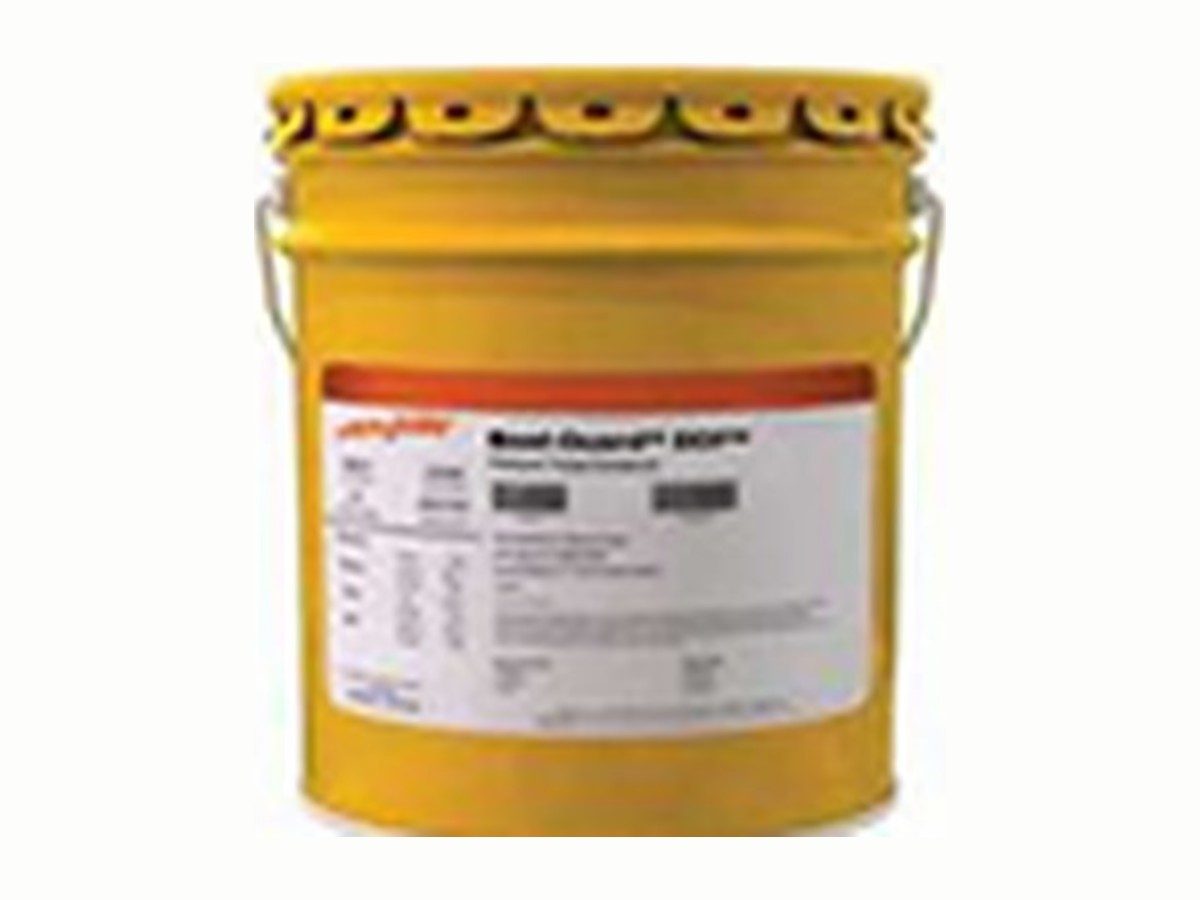

SEAL-GUARD™ ECF™ Premium Connection Thread Compound

Ospar Commission-HOCNF (Harmonized Offshore Chemical Notification Format) • Classification: “Yellow” rating for Norway • “E” for the United Kingdom and Netherlands SEAL-GUARD ECF is specifically formulated for mechanical seal thread designs and high-alloy steel materials. The smaller particle size distribution may not provide optimum sealability on 8-round and buttress thread forms. Biodegradable • Metal-free • Frictional properties similar to API MODIFIED. Rating: -20°F (-29°C) to 450°F (232°C)

View details

Lubricant/grease

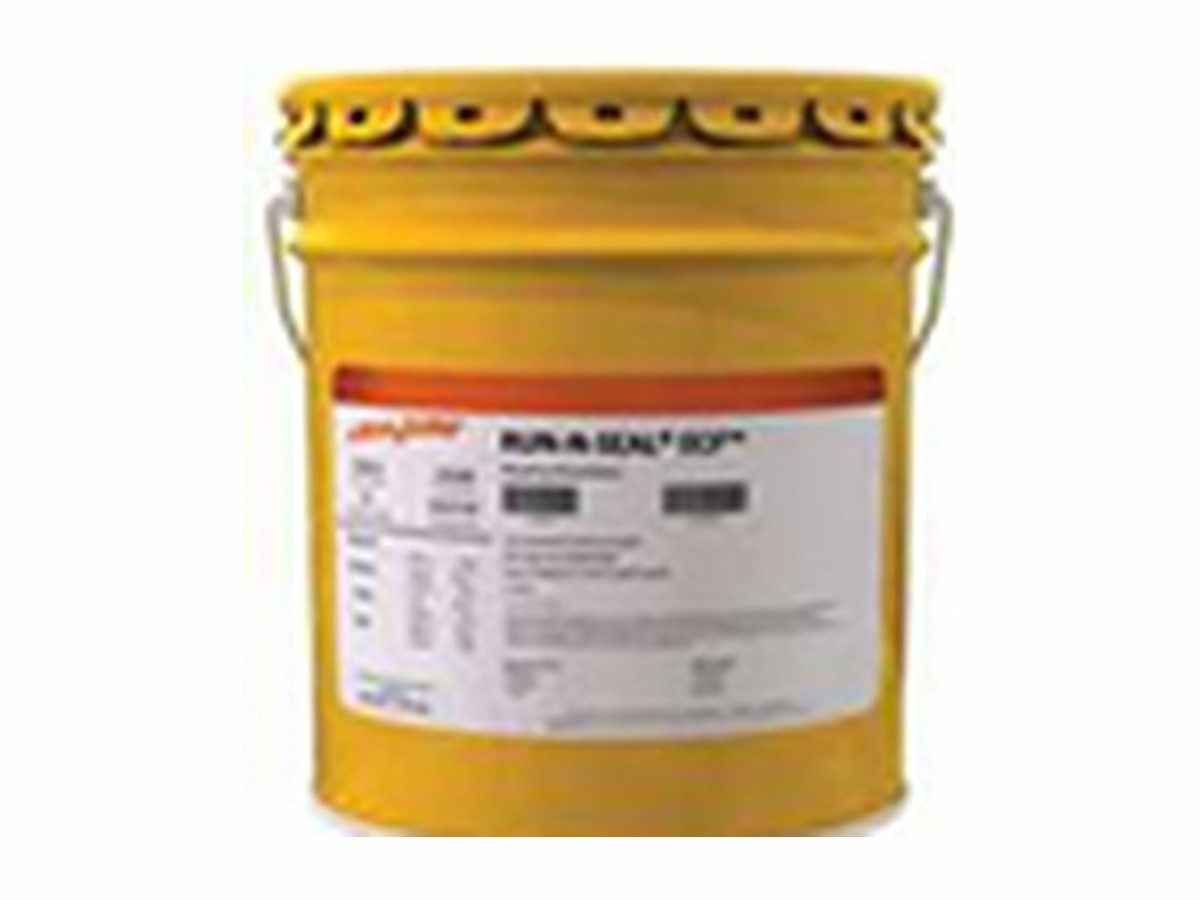

RUN-N-SEAL® ECF™ Non-Premium Thread Connection Sealant

Ospar Commission-HOCNF (Harmonized Offshore Chemical Notification Format) • Classification: “Yellow” rating for Norway • “E” for the United Kingdom and Netherlands RUN-N-SEAL ECF is a high-pressure sealant alternative for API Buttress and other larger clearance thread seal connection designs. It is brushable over a wide range of temperatures and has excellent inherent water resistance. RUN-N-SEAL ECF sticks to wet and oily steel, ensuring the compound will not wash-off threads. Rating: 0˚F (-18˚C) to 450˚F (232˚C) • Friction factor 1.0 relative to API-MODIFIED

View details

Lubricant/grease

ECO-SAFE™ Nonmetallic Thread Compound

ECO-SAFE is a nontoxic compound containing carbon-based fibers and additives with other natural extreme pressure and anti-wear additives. These are blended into JET-LUBE's high temp calcium complex base grease. This base grease offers the additional advantage of superior adhesion to wet steel surfaces, resistance to water wash-off, and most drilling fluids. Especially effective for invert or high-pH fluids. Available in Pumpable & Sprayable. Rating: -20°F to 500°F (-29°C to 260°C) (Pumpable) / -40° F to 500°F (-40°C to 260°C) (Sprayable)

View details

Lubricant/grease

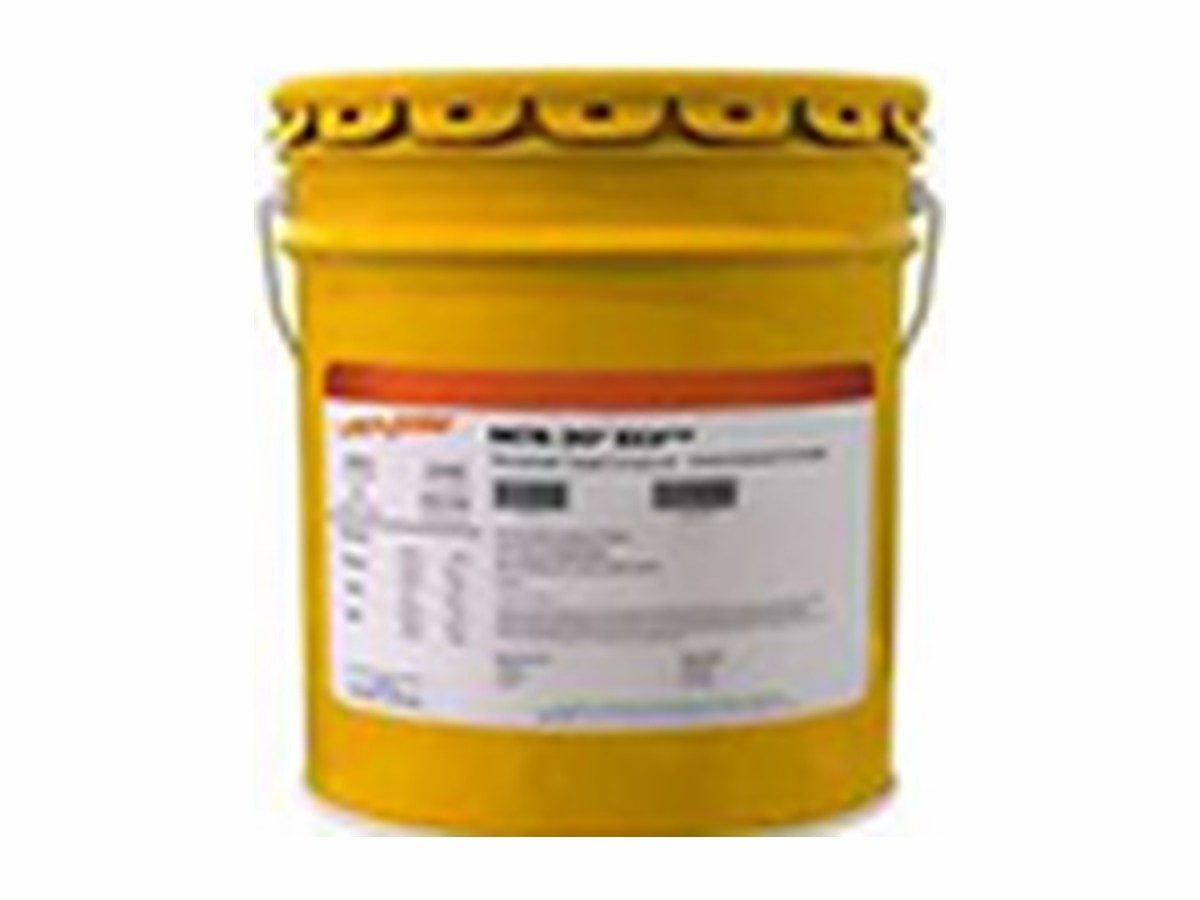

NCS-30® ECF™ Tool Joint & Drill Collar Compound

This biodegradable, nonmetallic formula meets Norway “Yellow”, British and Dutch “E” HOCNF classifications. NCS-30 ECF's extreme-pressure and anti-wear additives control friction and galling. It resists wash-off and sticks to wet pipe. NCS-30 ECF withstands invert and high-pH muds and is non conductive for MWD. This tool joint & drill collar compound is excellent for high-chrome or nickel alloy connections in extreme temperature service. The complex grease carrier in Jet-Lube NCS 30 ECF allows it to provide extended storage capability. Rating: -20°F (-29°C) to 450°F (232°C)

View details

Lubricant/grease

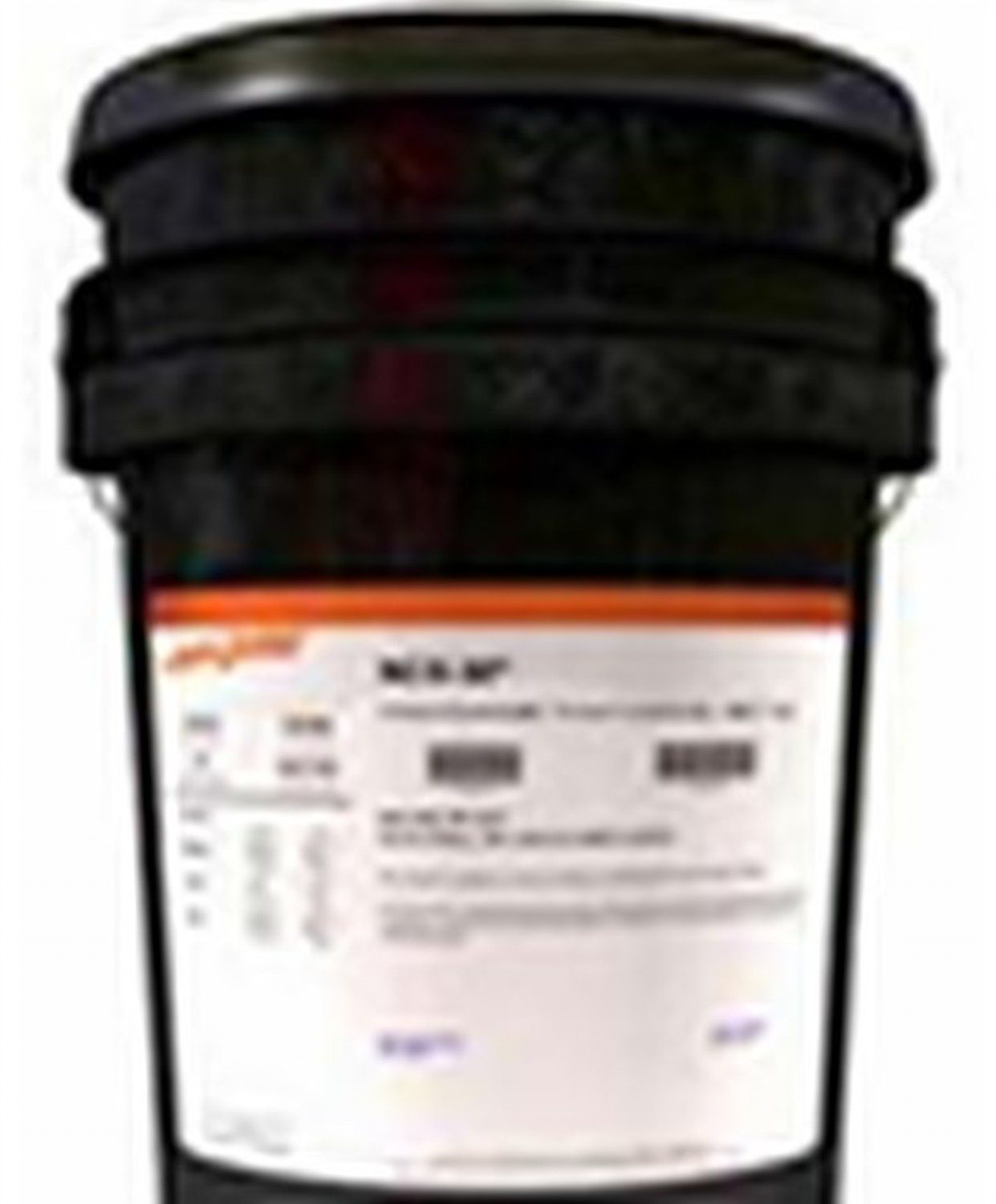

NCS-30® Tool Joint & Drill Collar Compound

NCS-30 is a premium-quality, non-metallic compound containing carbon-based fibers and additives and other natural extreme-pressure and anti-wear additives. These additives are blended into JET-LUBE’s high-temp, calcium-complex base grease, which also offers extended storage capability to NCS-30. This base grease offers the additional advantage of superior adhesion to wet steel and resistance to water wash-off. NCS-30 is especially effective for invert or high-pH muds. Rating: -20˚F (-29˚C) to 500˚F (260˚C), Arctic: -40˚F (-40˚C)

View details

Lubricant/grease

JLS® Tool Joint Compound

JLS TOOL JOINT COMPOUND is economical and contains premium-grade copper flakes, amorphous graphite, extreme-pressure additives, rust and corrosion inhibitors and other special purpose ingredients at lower doses to be used in less severe drilling applications. JLS is recommended for use on tool joints in drilling medium-depth formations. It provides consistent control of make up, break out, galling and seizure. Rating: 0°F (-18°C) to 450°F (232°C)

View details

Lubricant/grease

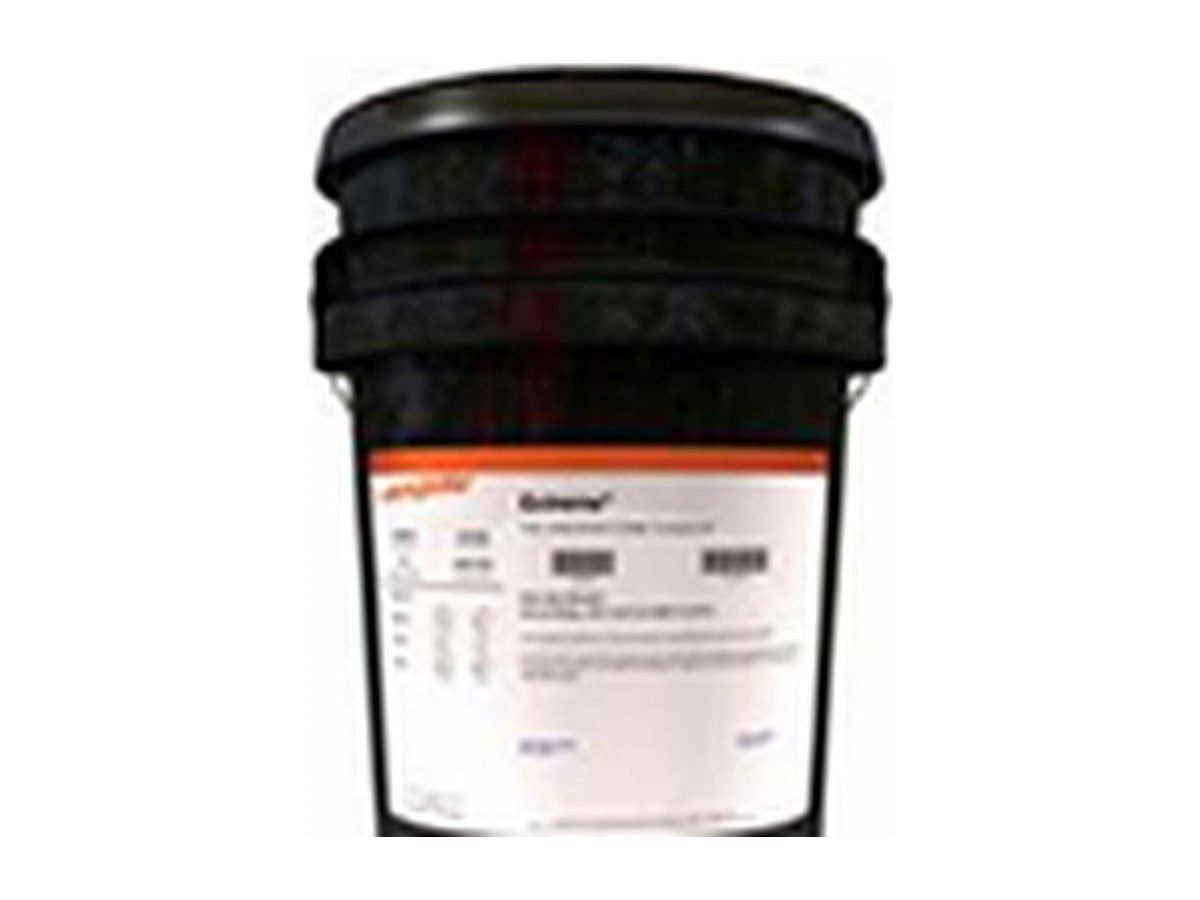

EXTREME® Mud Resistant Drill Collar & Tool Joint Compound

EXTREME is a premium-quality, unleaded compound blended into JET-LUBE's high-temp, mud-resistant, complex-base grease which also offers extended storage capability. It prevents excessive circumferential make up by increasing the coefficient of friction under compressive forces. As stress levels rise above 50% of yield, the friction factor increases, limiting downhole make up. Full hydraulic joint efficiency is maintained allowing joint shoulder faces to mate completely without standoff or deformation. EXTREME has an exception from the DOT's marine-pollutant labeling requirements. Rating: 0°F (-18°C) to 450°F (232°C)

View details

Lubricant/grease

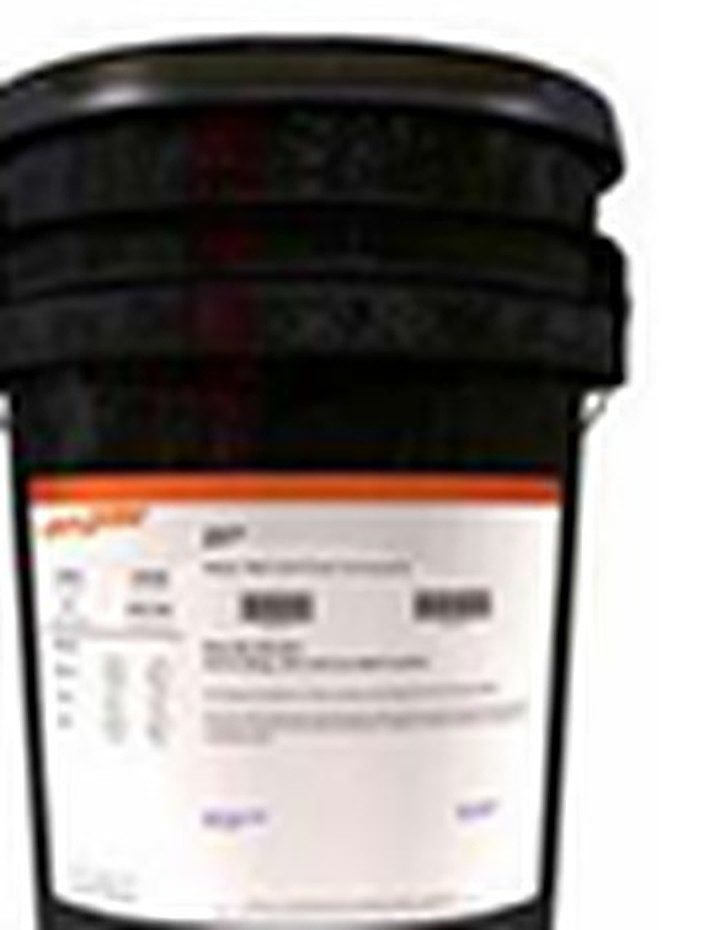

21® Double-Duty Tool Joint & Drill Collar Compound

21 is a high-quality product designed for less severe applications than KOPR-KOTE. It is formulated to prevent excessive circumferential make up of tool joints and protects against galling and high stress to prolong thread and shoulder life. 21 is designed for use as a tool joint compound for consistent control of make up and break out. It may also be used on collars in less severe drilling conditions. The high-dynamic friction factor helps prevent excessive downhole make up and belling out of box members. 21 has an exception from the DOT's marine-pollutant labeling requirements and some extended storage properties. Rating: Standard: 0°F (-18°C) to 450°F (232°C), Thermal: 0°F (-18°C) to 700°F (370°C), Arctic: -65°F (-55°C) to 300°F (149°C)

View details

Lubricant/grease

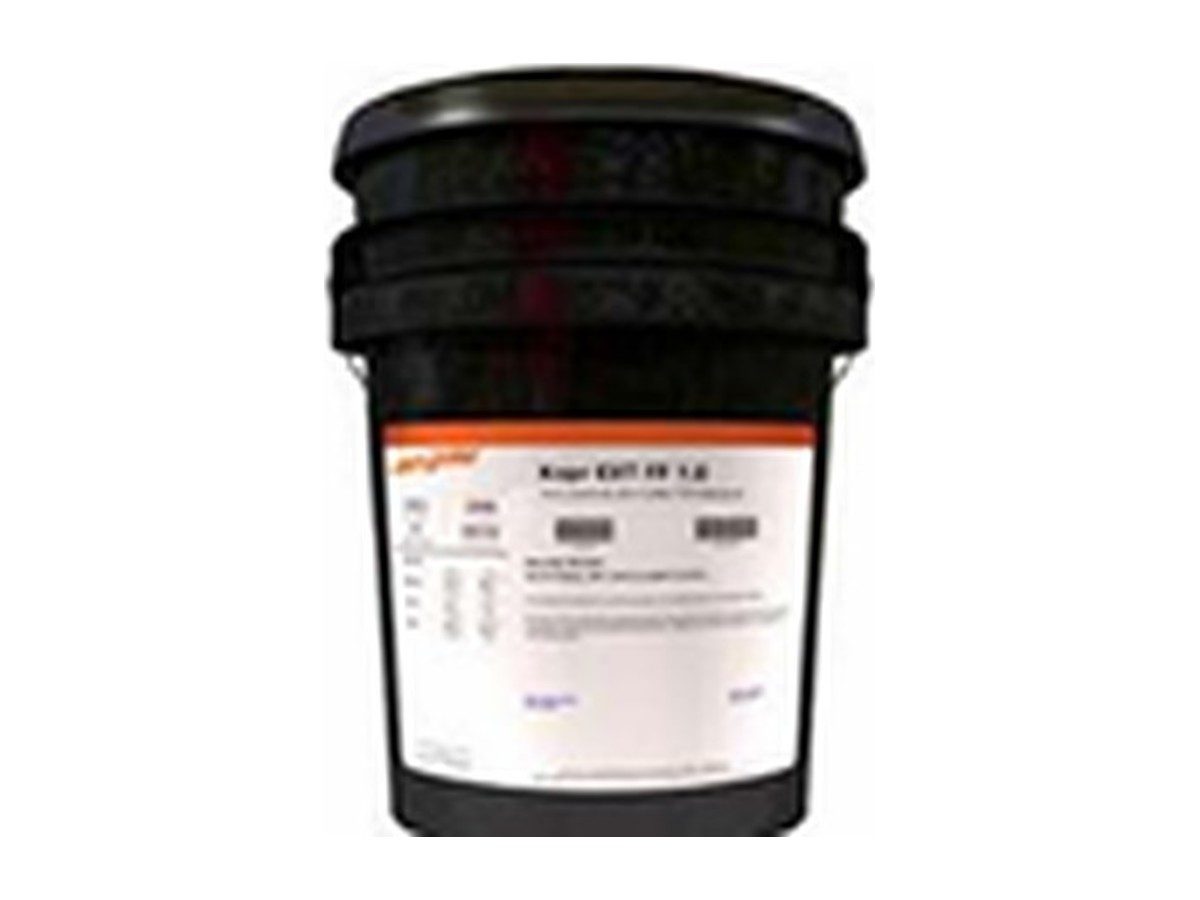

KOPR EXT FF 1.0 Tool Joint & Drill Collar Compound

KOPR EXT FF 1.0 is a modification of JET-LUBE® EXTREME®. It's designed with a lower coefficient of friction to be used where rig tong and/or iron roughneck units lack the torque capacity to reach the optimum engagement of higher torque connections. KOPR EXT FF 1.0 still offers the advantage of superior adhesion, improved EP and antiwear properties, resistance to water wash-off, and superior rust and corrosion protection in the presence of invert or high-pH muds. Available in Arctic. Rating: 0°F (-18°C) to 450°F (232°C), Arctic: -40°F (-40°C) to 450°F (232°C)

View details

Lubricant/grease

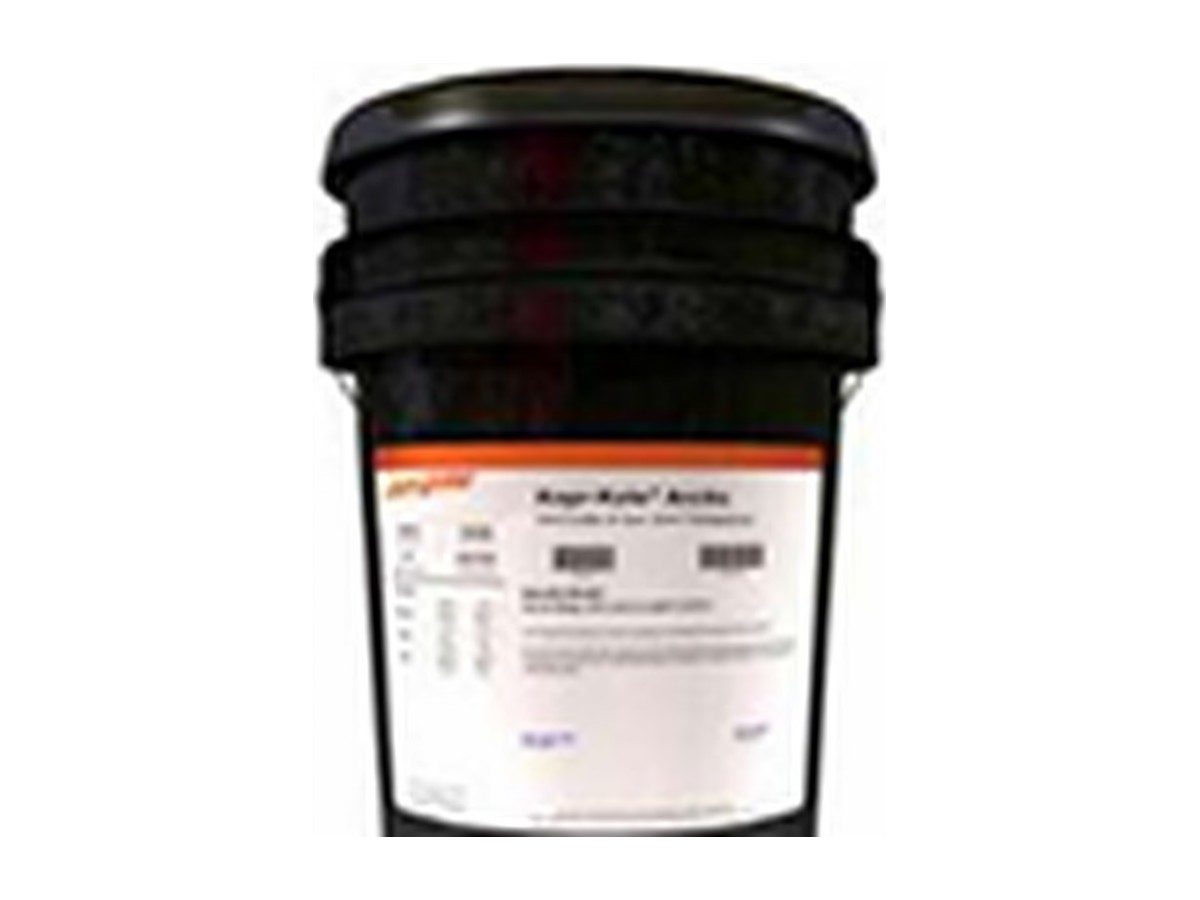

KOPR-KOTE® ARCTIC Drill Collar & Tool Joint Compound

KOPR-KOTE ARCTIC is the more pumpable or sprayable version of the standard grade of KOPR KOTE. It is an unleaded compound containing copper flake, graphite, and other natural extreme pressure and anti-wear additives. KOPR-KOTE ARCTIC's solids package is formulated to prevent excessive circumferential makeup by increasing the coefficient of friction under compressive forces. As stress levels rise above 50% of yield, the friction factor increases, limiting downhole makeup. Full hydraulic joint efficiency is maintained allowing joint shoulder faces to mate completely without standoff or deformation. Rating: -65˚F (-54˚C) to 300˚F (149˚C) (Note: Base oil pour points can vary effecting the range)

View details

Lubricant/grease

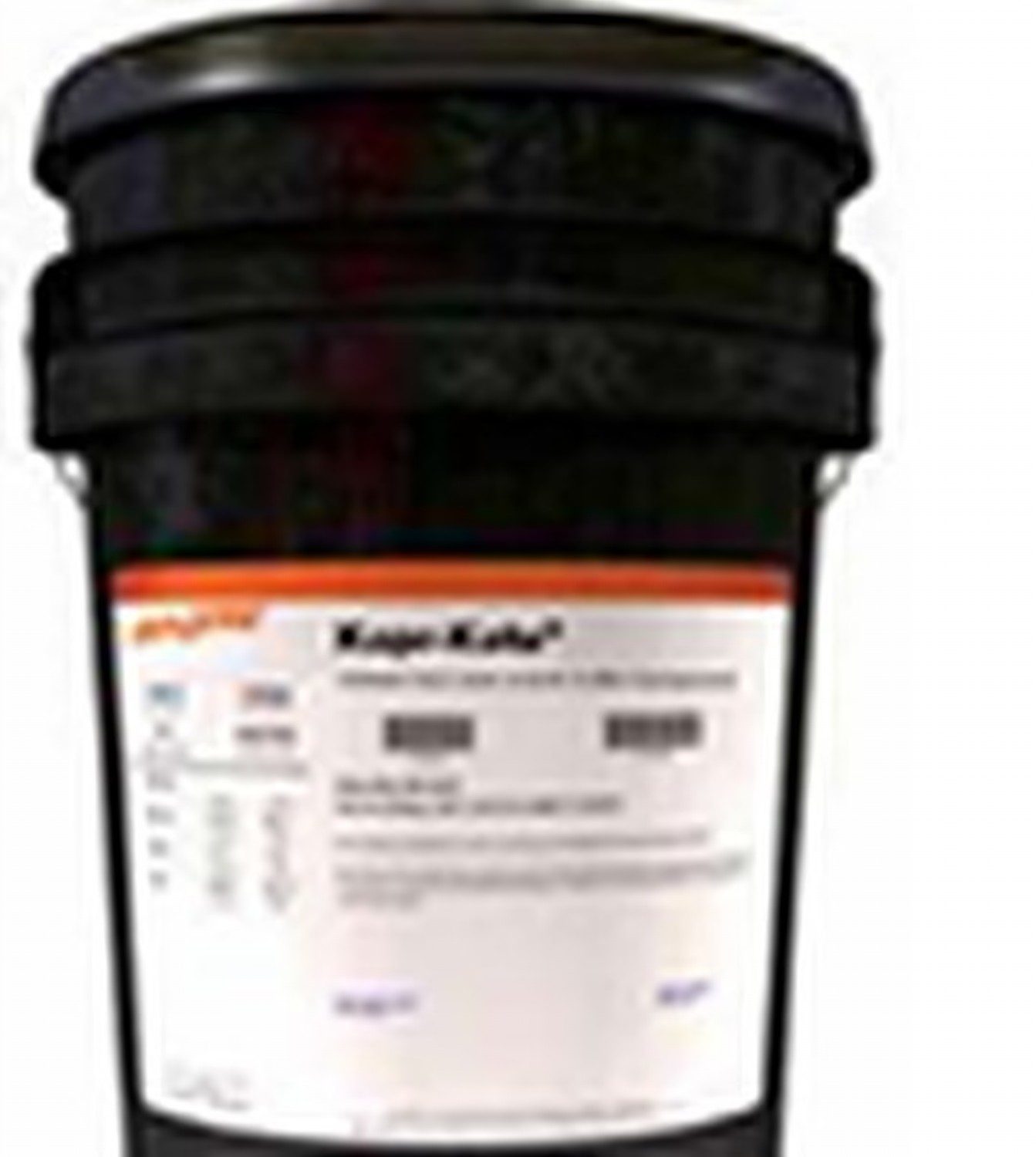

KOPR-KOTE® Drill Collar & Tool Joint Compound

KOPR-KOTE is a premium, established, widely recognized copper-based drilling compound. It is also one of the few copper compounds to be granted a marine-pollutant exception by the DOT. KOPR KOTE is uniquely formulated to prevent excessive circumferential make up and has a very high static friction factor that helps prevent downhole joint make up when excessive drilling torques are encountered. It prevents galling and seizure and allows easy breakout. KOPR-KOTE is recommended for all oilfield threads: drill pipe, collars, tools and jacking systems. Rating: 0°F (-18°C) to 450°F (232°C)

View details

Lubricant/grease

AP-5™ High-Temp Multipurpose Grease with Moly

Formulated from bentone clay, AP-5 is noted for its high temperature insensitivity, its non-melting and does not thicken excessively at temperatures as low as 0F (-18C). It has mechanical stability, is water resistant, displays high stability, provides excellent adhesion to metals, prevents wear and has superior storage life. AP-5 contains molybdenum disulfide, oxidation inhibitors, corrosion inhibitors and metal deactivators. It offers positive protection for extreme services, which require heavy duty lubricant performance. Ideal for oven chains.

View details
